Compare Regression Losses with GridSearchCV

Due to its compatibility with the scikit-learn API, GridSearchCV can be used to compare Huber, MAE, and MSE losses under a unified pipeline, identify the best loss, and select its optimal hyperparameter.

## install rehline
%pip install rehline -q

## simulate data
from sklearn.datasets import make_regression

X, y = make_regression(n_samples=10000, n_features=5, noise=30.0, random_state=42)
y = y / y.std()
y[-40:] += 20

## compare Huber, MAE and MSE via GridSearchCV
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import StandardScaler
from rehline import plq_Ridge_Regressor
from sklearn.model_selection import GridSearchCV
import warnings
warnings.filterwarnings("ignore")

pipe = Pipeline([
    ('scaler', StandardScaler()),
    ('reg', plq_Ridge_Regressor(loss={'name': 'mse'}))
])

# Define the parameter grid to search
param_grid = {
    'reg__C': [0.1, 1.0, 10.0],
    'reg__loss': [{'name': 'huber', 'tau': 1.0}, {'name': 'mae'}, {'name': 'mse'}]
}

# Create the GridSearchCV object
grid_search = GridSearchCV(pipe, param_grid, cv=5)
grid_search.fit(X, y)

GridSearchCV(cv=5,
             estimator=Pipeline(steps=[('scaler', StandardScaler()),
                                       ('reg',
                                        plq_Ridge_Regressor(loss={'name': 'mse'}))]),
             param_grid={'reg__C': [0.1, 1.0, 10.0],
                         'reg__loss': [{'name': 'huber', 'tau': 1.0},
                                       {'name': 'mae'}, {'name': 'mse'}]})

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

# Print the best loss function and score
print(f"Overall Best Params: {grid_search.best_params_}")
print(f"Overall Best Score:  {grid_search.best_score_:.5f}")

Overall Best Params: {'reg__C': 1.0, 'reg__loss': {'name': 'mae'}}
Overall Best Score:  0.77874

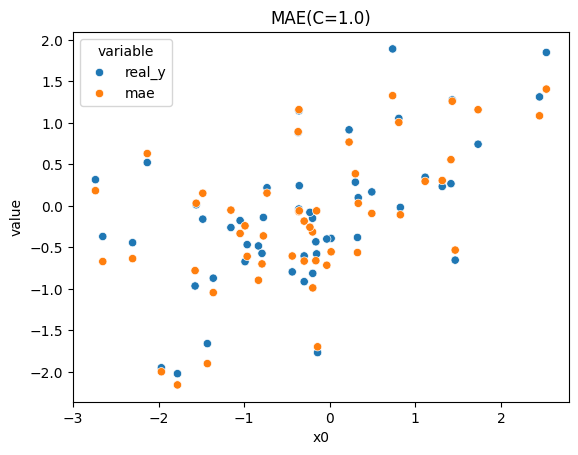

## Plot the best model
import pandas as pd
import seaborn as sns
import warnings
import matplotlib.pyplot as plt

warnings.filterwarnings("ignore", "is_categorical_dtype")
warnings.filterwarnings("ignore", "use_inf_as_na")

n_sample = 50
X_sample, y_sample = X[:n_sample], y[:n_sample]
grid_sample = grid_search.predict(X_sample)

df = pd.DataFrame({'x0': X_sample[:, 0], 'real_y': y_sample, 'mae': grid_sample})
df = df.melt(id_vars='x0')

sns.scatterplot(data=df, x='x0', y='value', hue='variable').set_title("MAE(C=1.0)")
plt.show()

Compare Huber & MAE & MSE

# Print best results per loss
import pandas as pd
df = pd.DataFrame(grid_search.cv_results_)
df['Loss'] = df['param_reg__loss'].apply(lambda x: x['name'])
df = df.sort_values('mean_test_score', ascending=False)
best = df.drop_duplicates(subset=['Loss'])
table = best[['Loss', 'param_reg__C', 'mean_test_score']].rename(
    columns={'param_reg__C': 'Best C', 'mean_test_score': 'CV Score'}
)

print(table.to_string(index=False))

 Loss  Best C  CV Score
  mae     1.0  0.778740
huber     0.1  0.778691
  mse     0.1  0.769240

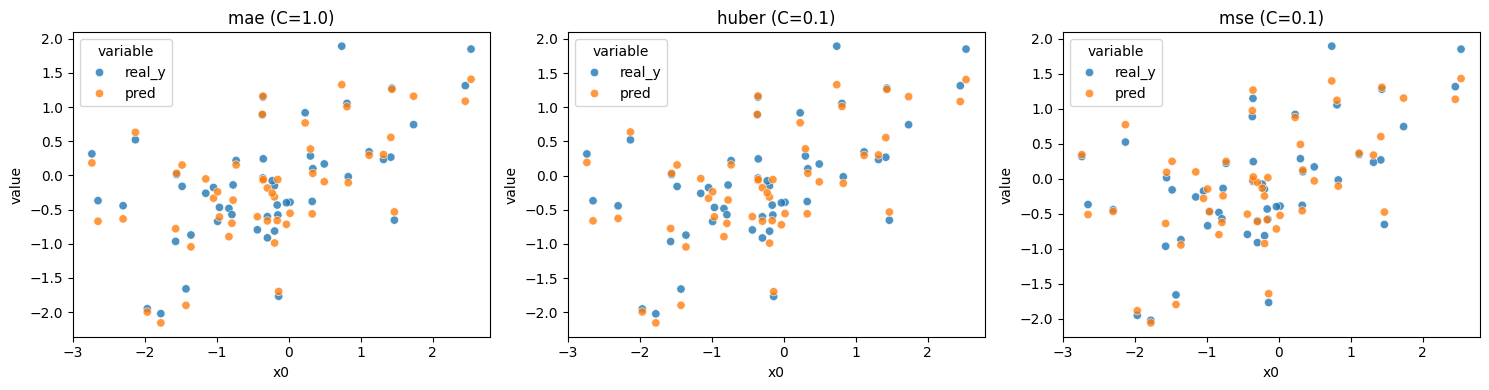

import numpy as np
import seaborn as sns
import warnings
import matplotlib.pyplot as plt
warnings.filterwarnings("ignore", "is_categorical_dtype")
warnings.filterwarnings("ignore", "use_inf_as_na")

fig, axes = plt.subplots(1, 3, figsize=(15, 4))
n_sample = 50
X_sample, y_sample = X[:n_sample], y[:n_sample]

for i in range(len(best)):
    loss = best['Loss'].iloc[i]
    c = best['param_reg__C'].iloc[i]

    pipe = Pipeline([
        ('scaler', StandardScaler()),
        ('reg', plq_Ridge_Regressor(loss={'name': loss}, C=c))
    ])
    pipe.fit(X, y)

    pred_y = pipe.predict(X_sample)
    df = pd.DataFrame({'x0': X_sample[:,0], 'real_y': y_sample, 'pred': pred_y})
    df = df.melt(id_vars='x0')

    sns.scatterplot(data=df, x='x0', y='value', hue='variable', ax=axes[i], alpha=0.8).set_title(f"{loss} (C={c})")

plt.tight_layout()
plt.show()
